BOSCH REXROTH
3842523549
$18.16
- BOSCH REXROTH
- Material:3842523549
- Model:GUSSET 60X60 8/8 SET
Quantity in stock: 20
| Brackets with centering lugs for rapid, precise assembly with protection against turning |
| Centering lugs can be easily broken off for assembly on plates or at right angles to the slot |
| Intermediate element for positioning brackets in the next largest slot |
| Cover cap to protect from dirt, available in signal gray (RAL 7004) and black ESD (RAL 9005) |
| Profile finishing: not required |
| Profile finishing: not required |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Bending moment 1 | 320 |
| Fastening material included | yes |
| Productgroup ID | 2 |
| Torsional moment | 110 |
| ESD | yes |
| Dimensions | 60x60 |
| Material | Diecast aluminum, vibratory ground |
| Bending moment 2 | 370 |
| Weight | 0.178 |
| Scope of delivery | incl. fastening material (FS),Bracket (standard) |
| Recommended accessories | Intermediate element for 10 mm slot (3842523537) ,Cover cap for bracket 60x60, signal gray (3842548852) ,Cover cap for bracket 60x60, black (3842548853) |
| Material information | Bracket: Diecast aluminum, vibratory ground,Fastening material: Steel, galvanized |
| Fastening material | 8x cylinder head screw DIN 7984-M6x14,8x T-nut groove 8 M6 |
| Profile slot | 8 |
|
Groove |
ESD |
Material entry |
|
|
|
|
|
|
Fmax |
Mmax |
Mmax |
Mmax |
||||
|
N |
Nm |
Nm |
Nm |
||||
| Bracket | 8 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
5000 | 320 | 370 | 110 |
| 8; 10 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
5000 | 320 | 370 | 110 | |
| 10 |
|
Bracket: Diecast aluminum, vibratory ground Fastening material: steel; galvanized |
3000 | 125 | 150 | ||
| 8 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
5000 | 320 | 370 | 110 | |
| 8; 10 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
5000 | 320 | 370 | 110 | |
| 10 |
|
Bracket designLINE: Diecast aluminum; vibratory ground, painted (RAL 9006) Fastening material: steel; galvanized |
3000 | 125 | 150 | ||
| 8 |
|
Bracket: Diecast aluminum, vibratory ground | 5000 | 320 | 370 | 110 | |
| Cover cap for bracket | PP | ||||||
|
|
PP | ||||||
| Intermediate element for 10 mm slot | 8; 10 | PA; black |
|
Typ |
Nut |
|
|
|
|
|
60 / 60 |
8 |
5000 N |
320 Nm |
370 Nm |
110 Nm |
|
10 |
3000 N |
125 Nm |
150 Nm |
- |

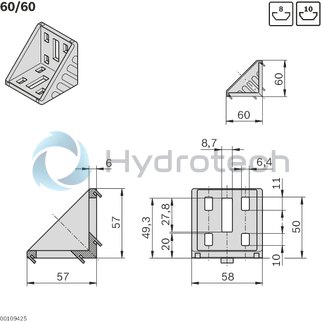

Bracket 60/60 with cover cap
| Recommended accessories | ||
| Intermediate element for 10 mm slot | ||
| Cover cap for bracket 60/60, signal gray | ||
| Cover cap for bracket 60/60, black |
|
FS2 |
FS5 |
|
|
