BOSCH REXROTH
SPINDLE M12 L85
3842537222
$5.54
- BOSCH REXROTH
- Material:3842537222
- Model:SPINDLE M12 L85
Quantity in stock: 2

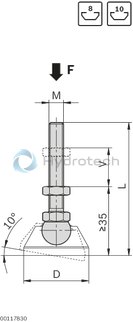

Leveling foot spindle, steel; galvanized M12x85
Unpacked Weight: 0.078 kg
| Leveling feet for compensating irregularities in the floor up to 10° – modular system, various combinations possible – spindles and base plates can be combined as desired – base plates with screw hole for simple screw fitting to the floor: Leveling feet for compensating irregularities in the floor up to 10° – modular system, various combinations possible – spindles and base plates can be combined as desired – base plates with screw hole for simple screw fitting to the floor |
| Profile finishing: thread M in central hole |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Productgroup ID | 2 |
| Thread size | M12 |
| Packaging unit | 20 |
| Force F | 20000 |
| ESD | yes |
| Length [L] | 85 |
| Adjustment range [V] | 30 |
| Material | Steel, galvanized |
| Weight | 0.078 |
| Required accessories | Bearing ring |
| Profile slot | 8; 10 |
Spindle
Bearing ring
Bearing ring
For cover caps with hole in the sizes 40x40, 45x45, 50x50 and 60x60 For M12 threads To protect the caps when tightening accessoriesCAD data
