BOSCH REXROTH
JOINT 40X40
3842543401
$32.70
- BOSCH REXROTH
- Material:3842543401
- Model:JOINT 40X40
Quantity in stock: 6

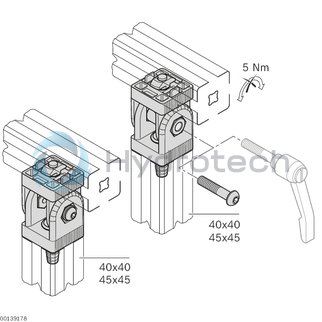

Joint 40x40 standard
Unpacked Weight: 0.304 kg
| Version designLINE with special silver paint (RAL 9006) for an especially high-quality design: Version designLINE with special silver paint (RAL 9006) for an especially high-quality design |
| For movable or rigid profile connections at any angle |
| Swivel range 180° |
| With marking in 15° increments |
| Clamping and convenient adjustment of “support” joint using a clamping lever (5 Nm) |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 2 |
| Packaging unit | 1 |
| Force F2 | 1000 |
| Swivel range | 180 |
| ESD | yes |
| Dimensions | 40x40 |
| Modular dimension | 40 |
| Force F1 | 15000 |
| Material | Diecast aluminum |
| Weight | 0.304 |
| Scope of delivery | Incl. fastening material |
| Recommended accessories | Clamping lever: 3842516847 |
| Material information | Joint: Diecast aluminum,Fastening material: Steel, galvanized |
| Fastening material | 2x flange head screw M8x16,2x T-nut groove 10 M8,2x screw S12x30 |
| Profile slot | 10 |
|
F1 (N) |
F2 (N) |
|
15000 |
1000 |
|
FS3 |
FS4 |
|
|
