BOSCH REXROTH
3842544530


$36.33
  • BOSCH REXROTH
  • Material:3842544530
  • Model:HINGE AL 40/40

Quantity in stock: 20



Hinge, aluminum P1=40 P2=40

Unpacked Weight: 0.1 kg

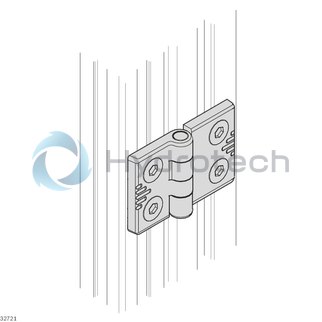

technical illustration-3842544530-Hinge, aluminum P1=40 P2=40 technical illustration-3842544530-Hinge, aluminum P1=40 P2=40
Assembly possible on solid surface elements
High-quality version
Conductive version
Suitable for use under clean room conditions thanks to abrasion-resistant guide bushings
Installation in slot
Data Sheet Download Data Sheet
3D CAD Download 3D CAD
Productgroup ID2
Packaging unit2
ESDyes
Force [Fmax]300
Profile [P2]40
Hinge typeAluminum
MaterialDiecast aluminum, nickel-plated
Dimension [B]37
Weight0.1
Scope of deliveryIncl. fastening material
Dimension [A]37
Material informationHinge: Diecast aluminum, nickel-plated,Fastening material: Steel, galvanized
Profile [P1]40
Fastening material4x countersunk screw DIN7991-M6X16,4x T-nut groove 10 M6
Profile slot10
Fastening material4x countersunk screw DIN7991-M6X16,4x T-nut groove 10 M6
Profile slot10

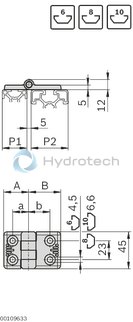

technical illustration-3842544530-Hinge, aluminum P1=40 P2=40

No.

Material

3842544525 diecast aluminum; nickel-plated
Fastening material: steel; galvanized
3842544526
3842544527
3842544528
3842544529
3842544530
3842544531

Hinge, aluminum

technical illustration-3842544530-Hinge, aluminum P1=40 P2=40

FS1

FS2

FS3

technical illustration-3842544530-Hinge, aluminum P1=40 P2=40 technical illustration-3842544530-Hinge, aluminum P1=40 P2=40 technical illustration-3842544530-Hinge, aluminum P1=40 P2=40
