The Bosch Rexroth RETURN STOP (3842549696) is a critical component designed for use with conveyor systems to prevent workpiece pallets from rebounding. This pneumatic return stop is equipped with a spring-loaded safety catch, which ensures that the workpiece pallet moves smoothly in the transport direction while being securely stopped in the opposite direction. Its design allows for easy installation on either side of the conveyor, thanks to its compatibility with the groove of ST or BS section profiles. The RETURN STOP VE 2/RS-H PN is constructed from durable materials, featuring an aluminum housing that is hard-anodized for extra resilience and a steel stop cam that has been hardened to withstand rigorous use. It includes a pneumatic cylinder that is necessary for opening the safety catch, thus enabling reversible operation of the conveyor system. This model is particularly recommended when dealing with high overall weights and low damping conditions, ensuring reliable stopping action without causing a rebound effect. It can be integrated seamlessly with various conveyor components such as WT E, WT, and WT F series workpiece pallet systems. The device operates effectively within its designated temperature range and contributes to maintaining a safe and efficient workflow by providing secure stopping capabilities on demand. For applications requiring high-temperature resistance, there is an option to request a high-temperature stop gate variant of this product. Please note that this item comes unassembled, and it's important to refer to delivery information for details on shipping and handling. The RETURN STOP VE 2/RS-H PN offers both reliability and flexibility in designing advanced conveyor system solutions.
VE 2/RS-H return stop, pneumatic
Unpacked Weight: 0.318 kg
The return stop prevents the workpiece pallet from rebounding off the VE 2/D-... stop gate or the DA 2/... damper
Using the VE 2/RS-H is particularly advisable for high overall weights and low damping. In normal condition, the stop gate is moved into the lock position by a spring and the workpiece pallet runs over the VE 2/RS-H in the direction of transport and is stopped against the direction of transport. Mounted inside the tracks, directly on the conveyor section.
| Spring-loaded safety catch |
| Can be used on the left or right |
| Easy fastening in the groove of the ST 2/… or BS 2/… section profile |
| Pneumatic version, including pneumatic cylinder to open the safety catch. Necessary for reversible operation |
| Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H |
| Data Sheet | Download Data Sheet |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 2 |
| Workpiece pallet total weight [mG] | 250 |
| Mass [m] | 3 |
| Operating temperature [T] max | 0 ... +60 °C |
| Weight | 0.318 |
| Notice | High-temperature stop gate on request |
| Delivery information | Not assembled |
| Material information | Housing: Aluminum, hard anodized,Stop cam: Steel, hardened |
|
No. |
3842549696 | 3842549698 | ||
|
Max. total weight of workpiece pallet |
mG |
kg |
250 kg | 250 kg |
|
Workpiece pallet minimum weight |
m |
kg |
3 kg | 3 kg |
|
Operating temperature 1) |
T |
°C |
0 ... +60 | 0 ... +60 |
|
Material specification |
Housing: Aluminum, hard anodized Lug cam: Steel, hardened |
Housing: Aluminum, hard anodized Lug cam: Steel, hardened |
| 1) | High-temperature stop gate on request |

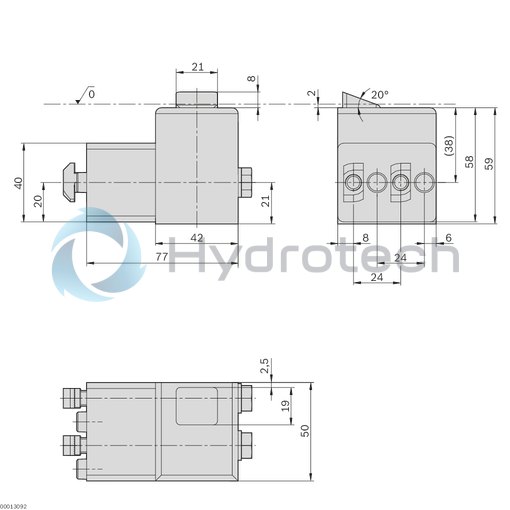

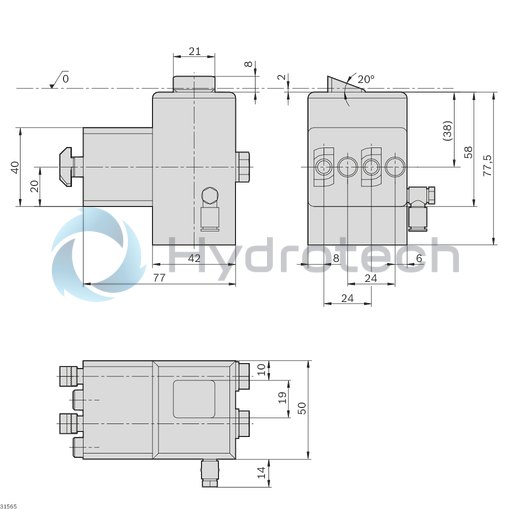

VE 2/RS-H return stop, pneumatic
VE 2/RS-H Return Stop

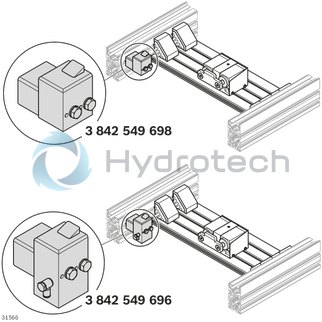

Note: The VE 2/RS-H return stop can only be installed on the WT 2 and WT 2/F without spacers.
Note: Reversible operation is only possible with the pneumatic version.
Condition of Delivery
| Not assembled |
