The Bosch Rexroth KBPSP8AA/HCG24K4V (R901047007) is a high-performance proportional pressure relief valve, designed for direct operation with an increasing characteristic curve. This screw-in cartridge valve is engineered to limit system pressure and is suitable for a variety of hydraulic fluid types including HL, HLP, HLPD, HVLP, HVLPD, HEES, HEPR, HEPG, HFDU, HFDR, and HFAS. The KBPSP8AA/HCG24K4V features a maximum operating pressure of 350 bar (5076 psi) and can handle a maximum flow of 100 l/min (26.4 gpm), making it ideal for demanding applications requiring precise pressure control. This valve is part of the KBPS product family and has been developed with an integrated coil and FKM sealing material for robust performance in challenging environments. The electroproportional actuation allows for fine-tuning of the pressure characteristic curve externally at the control electronics. In the event of power failure or when the command value is zero, this valve ensures that the minimum set pressure is maintained. The design includes a poppet-type spool within its cavity Sun TA configuration to ensure reliable operation in its normally closed position. Its direct-acting feature provides swift response times to command value changes. Additionally, the DIN EN electrical connector ensures secure electrical connections for consistent operational integrity. With its compact size and component series A designation, this Bosch Rexroth proportional relief valve offers versatility and ease of installation in various hydraulic systems where space may be at a premium but performance cannot be compromised. The capability to directly operate as a pilot control valve in seat design further enhances its utility across different applications where system pressure limitation is critical.

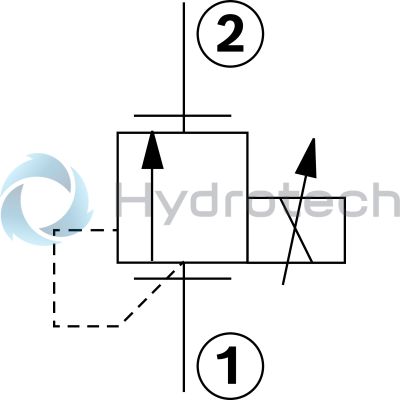

Proportional pressure relief valve, direct operated, increasing characteristic curve

Unpacked Weight: 0.44 kg

Valves of type KBPS.8A are direct operated proportional pressure relief valves (pilot control valves) in seat design and are used to limit a system pressure. With a command value of 0 or in case of power failure, the minimum pressure is set. Operation by means of a proportional solenoid with central thread and detachable coil. The solenoid's interior is connected to the main port and filled with hydraulic fluid. Dependent on the electric command value, these valves can be used to steplessly set the system pressure to be limited.

Screw-in cartridge valve
Maximum operating pressure 420 bar (6000 psi)
Maximum flow 2 l/min (0,5 gpm)
Cavity SUN T-8A
Max. pressure420
CoilGP37
Product family classificationProportional pressure relief valve, direct operated, increasing characteristic curve
Productgroup ID9,10,11,12,13,14
Product family typeKBPS
Ports number2
Type of actuationElectro-proportional
Sealing materialFKM
CavitySun T-8A
Product typeKBPS
Electrical connectorDIN EN 175301-803
Max. flow2
Type of connectionScrew-in cartridge valve
Normal positionNormally closed
Nominal flow2
Direct - PilotDirect acting
Product familyRelief
Supply voltage24 V DC
Coil integratedIntegrated coil
Spool PoppetPoppet type
Weight0.44
Hydraulic fluidHL,HLP,HLPD,HVLP,HVLPD,HEES,HEPR,HEPG,HFDU,HFDR,HFAS

01

02

03

04

05

06

07

08

09

10

11

12

KBPS

8

A

A

/

H

C

V

*

01

Proportional pressure relief valve, direct operated (pilot control valve)

KBPS

Pressure rating

02

Up to 30 bar

B

Up to 50 bar

C

Up to 100 bar

F

Up to 150 bar

H

Up to 210 bar

L

Up to 250 bar

N

Up to 315 bar

P

Up to 350 bar

R

Up to 420 bar

T

03

Component size

8

04

Minimum pressure with command value = 0

A

05

Component series

A

06

High Performance and mounting cavity R/T-8A (see mounting cavity)

H

07

Proportional solenoid, wet-pin

C

Power supply

08

Control electronics 12 V DC

G12

Control electronics 24 V DC

G24

Electrical connection

09

Without mating connector, with connector according to DIN EN 175301-803, separate order

K4

Without mating connector, with connector DT 04 - 2PA (Deutsch plug)

K40

Without mating connector, with connector AMP Junior-Timer

C4

Seal material

10

FKM seals

V

11

Standard version

no code

800 mA coil

-8

12

Further details in the plain text

*

For applications outside these parameters, please consult us!

general

Type

KBPS.8A

Size

8

Component series

A

Weight

kg

0.45

Installation position

any - if it is ensured that no air can collect upstream of the valve. Otherwise, we recommend suspended installation of the valve.

Ambient temperature range

°C

-20 … +120

hydraulic

Type

KBPS.8A

Maximum flow

l/min

2

Hydraulic fluid temperature range

°C

-20 … +80

Viscosity range

mm²/s

15 … 380

Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 1)

Class 20/18/15 according to ISO 4406 (c)

Hysteresis 2)

%

< 5

Range of inversion 2)

%

< 0.5

Response sensitivity 2)

%

< 0.5

Manufacturing tolerance of the command value pressure characteristic curve, related to 0.8 l/min; pressure increasing

at command value 100  % 2)

%

< 5

Step response

0% → 100% 3)

ms

70

100% → 0% 3)

ms

70
1) The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.
2) Of the maximum set pressure
3) depending on the system
