Cover plate wiper for ball rail systems - 30
Cover plate wiper for ball rail systems
Size = 30
Unpacked Weight: 0.0171 kg

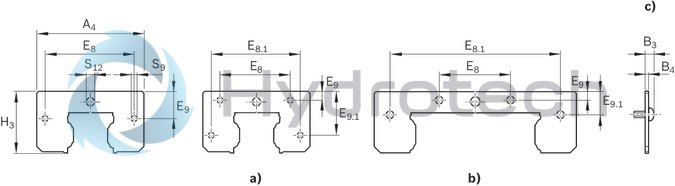

| Material: Corrosion-resistant steel as per DIN EN 10088 |
| Design: bright |
| Precision design with a maximum gap dimension of 0.1 to 0.3 mm |
| 2D CAD | Download 2D CAD |
| 2D CAD | Download 2D CAD |
| 3D CAD | Download 3D CAD |
| 3D CAD | Download 3D CAD |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Productgroup ID | 17 |
| Size B3 | 3.4 |
| Size B4 | 1 |
| Size H3 | 34.7 |
| Size diameter S12 (profiled rail systems) | 7 |
| Size diameter S9 (profiled rail systems) | 4 |
| Type | with cover strip |
| Size E8 (profiled rail systems) | 48.4 |
| Linear guide type | Accessories for profiled rail systems |
| Size E9 (profiled rail systems) | 14.1 |
| Size A4 (profiled rail system) | 59 |
| Accessories for profiled rail systems | Cover plate wiper |
| Weight | 0.0171 |
| Nominal size | 30 |
| a) | Scraper plate, size 65 |
| b) | Scraper plate, wide |
| c) | Fixing screw shown is an example |
Dimensions
|
Size |
15 | 20 | 25 | 30 | 35 | 45 | 55 | 65 | 20/40 1) 2) | 25/70 1) | 35/90 1) | |||||||
|
Part number |
R162011030 | R162081030 | R162081035 3) | R162021030 | R162021035 3) | R162071030 | R162031040 | R162031030 4) | R162041040 | R162041030 4) | R162051040 | R162051030 4) | R162061040 | R162061030 4) | R167051000 | R167021010 | R167031010 | |
|
A4 |
mm |
33 | 42 | 41 | 47 | 59 | 69 | 85 | 98 | 124 | 60 | 101 | 129 | |||||
|
B3 |
mm |
3.1 | 3.4 | 5.1 | 5.7 | 5.6 | 3.1 | 3.4 | ||||||||||
|
B4 |
mm |
1 | 2 | 2.5 | 1 | |||||||||||||
|
E8 |
mm |
24.55 | 32.4 | 30.5 | 38.3 | 48.4 | 58 | 69.8 | 80 | 76 | 18 | 35 | 79 | |||||
|
E8.1 |
mm |
- | 100 | 53.4 | 83.5 | 116 | ||||||||||||
|
E9 |
mm |
6.3 | 6.8 | 5.1 | 11 | 8 | 14.1 | 17 | 20.5 | 21.8 | 10 | 2.65 | 4.35 | 5.6 | ||||
|
E9.1 |
mm |
- | 52.5 | 7.35 | 10.75 | 28.7 | ||||||||||||
|
H3 |
mm |
19.2 | 24.8 | 22.8 | 29.5 | 26.5 | 34.7 | 40.1 | 50 | 56.4 | 74.7 | 21.7 | 29.1 | 40.8 | ||||
|
Ø S9 |
mm |
3,5 | 4 | 5 | 6 | 5 | 3,5 | 4 | ||||||||||
|
Ø S12 |
mm |
4,6 | 5,1 | 4 | 7 | 4 | 7 | 9 | 4 | 7 | ||||||||
| 1) | Wide ball rail system |
| 2) | Attention: Scraper plate is not combinable with Ball Guide Rail R167 . 8! |
| 3) | For Ball Runner Blocks F.N (flanged ... low profile) and S.N (slimline ... low profile) |
| 4) | For Ball Guide Rail without cover strip |
