BOSCH REXROTH
R900057455
$93.51
- BOSCH REXROTH
- Material:R900057455
Quantity in stock: 51

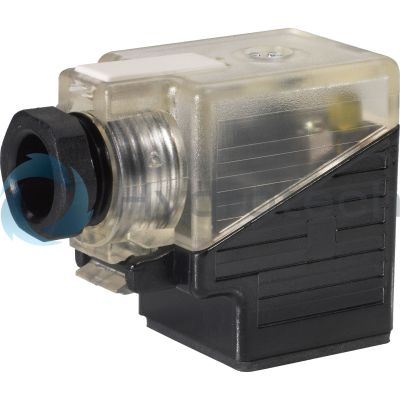

Mating connector
For valves with connector K4. OEM accessories. Industrial use.
Unpacked Weight: 0.052 kg
| Mating connectors for valves with one or two solenoids (individual connection) |
| For valves with connector "K4" according to EN 175301-803 and ISO 4400, 2-pole + PE, "large cubic connector" |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
| Productgroup ID | 9,10,11,12,13,14 |
| Electrical connector | Connector 3-pole (2 + PE) |
| Supply voltage | 24 VDC |
| Weight | 0.052 |
For applications outside these parameters, please consult us!
|
Short designation |
RZ55L | ||
|
Design |
A | ||
|
Ambient temperature |
with indicator light/rectifier |
°C |
-20 … +60 |
|
Protection class according to DIN EN 60529 |
IP65 (with mating connector mounted and locked) | ||
|
Indicator light |
LED yellow | ||
|
Number of poles |
2 + PE | ||
|
Terminal area for lines with external diameter |
mm |
5 … 10 | |
|
Wire cross-section, max. 1) |
mm² |
1.5 | |
|
Anschlussart |
Screw connection | ||
|
Standard |
EN 175301-803 | ||
|
Derating, max. |
1,5 A |
25 °C | |
|
1 A |
60 °C | ||
| 1) | 2.5 mm2 with special wire end ferrule clamp (e. g. Knipex 975314 or Weidmüller PZ 6/5) |
With indicator light and rectifier
Dimensions in mm
Dimensions in mm
|
1 |
Mounting screw M3 (not detachable), tightening torque MA = 0.5 Nm |
|
2 |
Fitting M16 x 1.5 / NPT 1/2“ (see table) |
