BOSCH REXROTH
R900731949


$695.52 USD
  • BOSCH REXROTH
  • Material:R900731949
  • Model:MULTISTATION MANI. 2HSR06M-40/01D PHOSP&

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth MULTISTATION MANI. 2HSR06M-40/01D PHOSP& (R900731949) is a meticulously engineered hydraulic manifold designed for constructing compact and efficient hydraulic control systems. This manifold serves as a base element for ready-for-connection controls in a vertical stacking design, facilitating the creation of highly compact hydraulic controls by using vertically stackable sandwich plate valves along with on/off and proportional servo valves. The design of the manifold allows for all stations to share common pump and tank ports labeled P and T, respectively, with the pump line accessible at both front sides of the manifold. Each station on this Bosch Rexroth manifold is equipped with separate actuator ports A and B, as well as measurement ports MA and MB, strategically placed at the bottom side of the plate for ease of access and system monitoring. The manifolds are prepped to accommodate a pressure relief valve type DBD and have provisions for installing a pressure gauge type ABZMM within channel P to ensure system safety and performance monitoring. With its capability to mount NG sandwich plates and valves, this product offers versatility in system design. It is built to withstand maximum operating pressures specified by its component series, ensuring reliable performance across multiple stations. Users can expect robust construction coupled with thoughtful design elements that streamline installation while providing flexibility in hydraulic system configuration. The MULTISTATION MANI. 2HSR06M-40/01D PHOSP& is an essential component for those looking to build effective hydraulic solutions that require precise control over fluid power in various applications.

Manifolds are the base element for ready for connection controls in vertical stacking design. On each station, highly compact hydraulic controls can be build using vertically stackable sandwich plate valves in connection with on/off and proportional servo valves. All stations have a common pump and tank port (P2 and T2). The pump line is lead out at both front sides of the manifold. Every station is equipped with separate actuator ports "A" and "B” and measuring ports “MA” and “MB”. The actuator ports are located at the bottom side of the plate. The manifolds are prepared for the installation of a pressure relief valve type DBD 6 and a pressure gauge type ABZMM in channel P.

01

02

03

04

05

06

07

08

Manifold

HSR

06

M

‒

40

/

01

D

Number of ready-for-connection controls in vertical stacking design

01

1 Control

1

2 controls

2

3 Controls

3

4 controls

4

5 controls

5

6 controls

6

7 controls

7

8 controls

8

02

Manifold

HSR

Size

03

Size 6

06

Measuring ports

04

With measuring ports in the actuator ports A and B

M

Component series

05

Manifold with installation possibility for a pressure relief valve type DBD 6 (with NG06) and attachment possibility for a pressure gauge type ABZMM in pressure channel P

40

Connection thread

06

Pipe thread according to ISO 228 Part 1

01

Position of actuator ports

07

At the bottom

D

Coating

08

Galvanic coating DIN 50979

FE//ZN8//CN/T0

Phosphate coating according to DIN EN 12476

PHOSPHATED 1)

1) Manganese or zinc phosphate coating

Required ordering code of a completely mounted manifold



Example:

2-fold manifold

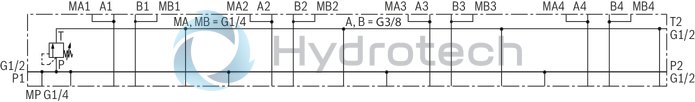

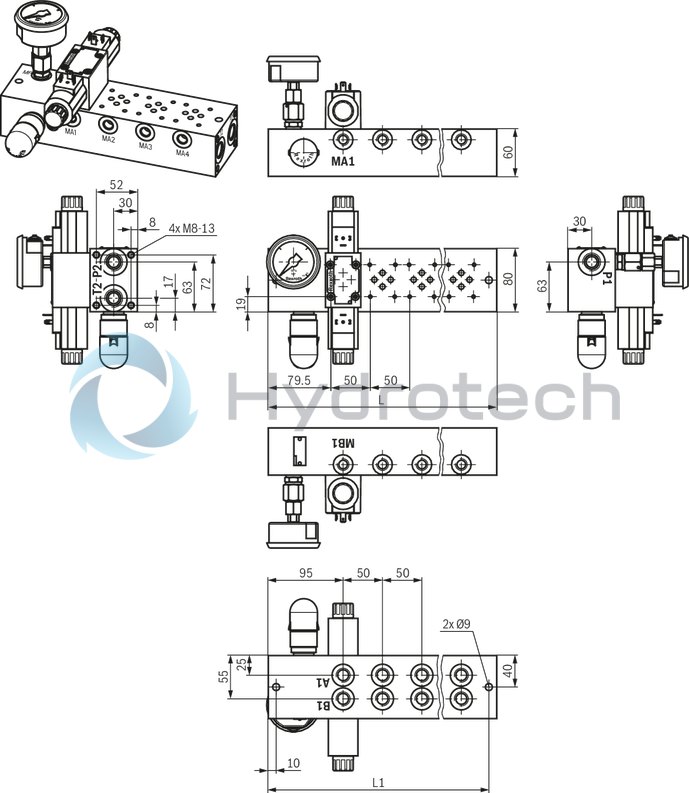

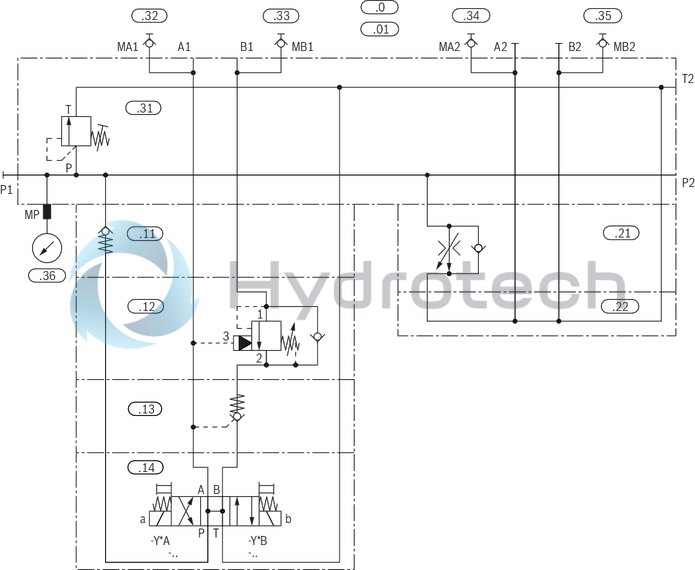

technical illustration-R900731949-Base element for ready-for-connection controls in vertical stacking design Compact hydraulic controls Common pump and tank line Separate actuator ports of the stations Measuring ports in the actuator lines Mounting of NG6 sandwich plates and valves Pressure relief valve type DBD in pressure line P Connection possibility of a pressure gauge in pressure line P

Position

Quantity

Device designation

Type designation

Material number

.0

1

2HSR06MD4X...C736A/G24N9K4M011)

1)

.01

1

Manifold

2HSR06M-40/01D PHOSPHATED

R900731949

.11

1

Check valve

Z1S 6 P15-4X/N

R901219725

.12

1

Sandwich plate

HSZ 06 A431-1X/LJ4M00

R900971827

.13

1

Check valve

Z2S 6B1-6X/

R900347501

.14

1

Directional spool valve

4WE 6 H73-6X/EG24N9K4/A12

R900906660

4

Stud screw

DIN939-M5X180-10.9

R900028125

4

Round nut

ZN10035-M5-ST

R913020308

.21

1

Flow control valve

Z2FRM 6 TB2-2X/6QRV

R900910912

.22

1

Cover plate

HSA 06 A005-4X/M00

R901092289

4

Hexagon socket head cap screw

ISO4762-M5X80-10.9-F&

R913000070

.31

1

Pressure relief valve

DBDS 6 K1X/315P220

R900773948

.32

1

Measuring coupling

MCS20-SDS-E-G1/4-ST3N00Z-M

R900009090

.33

1

Measuring coupling

MCS20-SDS-E-G1/4-ST3N00Z-M

R900009090

.34

1

Measuring coupling

MCS20-SDS-E-G1/4-ST3N00Z-M

R900009090

.35

1

Measuring coupling

MCS20-SDS-E-G1/4-ST3N00Z-M

R900009090

.36

1

Pressure gauge

ABZMM 63- 400BAR/MPA-R/B-G

R900022459

1

Assembly kit

AB-G1/4-G-G1/4-NBR

R901126946

2

Plug screw

ZN10001-G3/8A-N-ST

R913011602

For port A2, B2:

1

Plug screw

ZN1001-G1/2A-N-ST

R913011603

For port P1:

1

Name plate

RNI-17620-001-REXROTH

R900002783

1) Material number and short designation of the type are defined by Rexroth.

Size

6

Stations

from 1 ... 8

Material

GGG40

Surface coating

Galvanic coating according to DIN 50979 (FE//ZN8//CN//T0)
Phosphate coating according to DIN EN 12476 with after-treatment (greases, oils, lubricants) (FE//ZNPH/R/5/T4 or FE//MNPH/R/5/T4)

Operating pressure max. 1)

bar

315

Hydraulic fluid

see table below

Fixing holes

4 x M8 front threads for vertical attachment, 2 through holes ø9 for front attachment
1) Manifold without valve fitting

Hydraulic fluid

Classification

Standards

Data sheet

Mineral oil

Mineral oil HLP

DIN 51524

90220

Bio-degradable

Insoluble in water

Triglycerides (rape seed oil) HETG

ISO 15380

90221

Synthetic esters HEES

Soluble in water

Polyglycols HEPG

ISO 15380

Flame-resistant

Water-free

Organic esters HFDU, phosphoric acid esters HFDR

ISO 12922

90222

Containing water

Emulsions HFA-E, aqueous solution HFC

ISO 12922

90223

Important information on hydraulic fluids:

For further information and data on the use of other hydraulic fluids, please refer to the data sheets above or contact us. Some hydraulic fluids (HFC, HFD ...) may attack and destroy galvanized surfaces. Phosphatized plates (zinc phosphate coating, if applicable) are therefore not suitable. The zinc content of plates with galvanized insides, however, is very low. After a flushing procedure with subsequent filter exchange, the zinc is washed out. Special caution is required regarding leaking hydraulic fluid, especially during maintenance and disassembly of the manifold.

Notice:

For the installation, commissioning and maintenance of oil hydraulic systems, please observe data sheet 07900.

For applications outside these parameters, please consult us!
