BOSCH REXROTH
R901492563
$608.83
- BOSCH REXROTH
- Material:R901492563
- Model:4WE6G6X/EG96N9K4/A12V/62
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

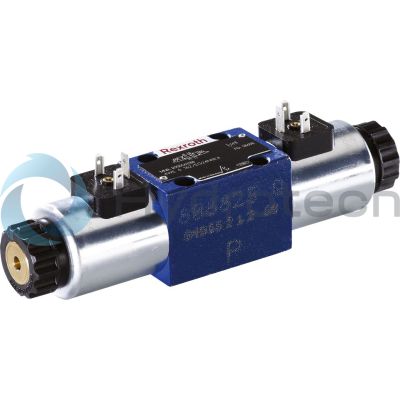

The Bosch Rexroth 4WE 6 G6X/EG96N9K4/A12V/62 (R901492563) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction in accordance with its hydraulic symbol G. This direct-actuated spool valve features a robust design that ensures consistent performance under demanding conditions. It is equipped with solenoid actuation, allowing for precise control of the valve's operation. The model has a maximum pressure capacity and comes with an electrical connection that includes a connector pole PE, conforming to EN standards. The product group ID indicates its categorization within Bosch Rexroth's range of hydraulic components. It has multiple ports and offers solenoid actuation as its type of actuation. The valve also meets CE conformity and adheres to the Low Voltage Directive of the EU, alongside CSA approval according to CSA C. No., confirming its compliance with international safety standards. With a size that corresponds to CETOP D and an electrical connector featuring a connector pole PE, this valve is designed for seamless integration into various hydraulic systems. It supports a maximum flow rate and can be connected according to NFPA T3.5.1 R2 D03 as well as ISO connection diagrams. The supply voltage requirement for this unit is 24 VDC, and it offers multiple switching positions for versatile application use. It weighs in at .65 kg, making it relatively lightweight given its capabilities. Additionally, it utilizes FKM seals and is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR types—ensuring flexibility across different system requirements while maintaining CE conformity standards.
The Bosch Rexroth 4WE 6 G6X/EG96N9K4/A12V/62 (R901492563) is a high-performance industrial hydraulic valve designed for reliable switching of oil flow direction in accordance with its hydraulic symbol G. This direct-actuated spool valve features a robust design that ensures consistent performance under demanding conditions. It is equipped with solenoid actuation, allowing for precise control of the valve's operation. The model has a maximum pressure capacity and comes with an electrical connection that includes a connector pole PE, conforming to EN standards. The product group ID indicates its categorization within Bosch Rexroth's range of hydraulic components. It has multiple ports and offers solenoid actuation as its type of actuation. The valve also meets CE conformity and adheres to the Low Voltage Directive of the EU, alongside CSA approval according to CSA C. No., confirming its compliance with international safety standards. With a size that corresponds to CETOP D and an electrical connector featuring a connector pole PE, this valve is designed for seamless integration into various hydraulic systems. It supports a maximum flow rate and can be connected according to NFPA T3.5.1 R2 D03 as well as ISO connection diagrams. The supply voltage requirement for this unit is 24 VDC, and it offers multiple switching positions for versatile application use. It weighs in at .65 kg, making it relatively lightweight given its capabilities. Additionally, it utilizes FKM seals and is compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, HEES, HEPG, HFDU, HFDR types—ensuring flexibility across different system requirements while maintaining CE conformity standards.
Size 6, symbol G, electrical with solenoid, 96 V DC
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Unpacked Weight: 1.917 kg
Direct actuated |
Spool valve |
Maximum flow (AC) 60 l/min |
Maximum operating pressure 350 bar |
Maximum flow (DC) 80 l/min |
Size 6 |
Component series 6X |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol G |
Max. pressure | 350 |
Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | with solenoid actuation |
Conformity description | CE – Low-Voltage Directive 2014/35/EU CSA approval according to CSA C22.2 No. 139-1982 |
Size | 6 |
Electrical connector | Connector 3-pole (2 + PE) |
Max. flow | 80 |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D03 |
Size_CETOP | D03 |
Connection diagram | ISO 4401-03-02-0-05 |
Supply voltage | 96 VDC |
Number of switching positions | 3 |
Weight | 1.917 |
Seals | FKM |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
Conformity | CE |
