BOSCH REXROTH
R901527253
$961.63
- BOSCH REXROTH
- Material:R901527253
- Model:5-4WE10EB5X/EG24N9K4/A06M
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

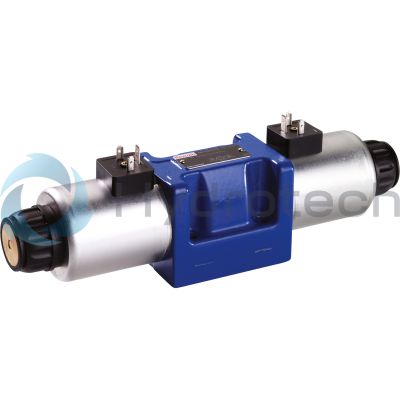

The Bosch Rexroth 5-4WE10EB5X/EG24N9K4/A06M (R901527253) is a high-performance industrial hydraulic valve designed for reliable operation in various hydraulic systems. This direct-actuated spool valve features a spool symbol EB, which indicates its function in switching the oil flow direction. With a maximum pressure capacity and solenoid actuation, it ensures precise control over fluid dynamics. The valve's size and CETOP D subplate mounting compatibility make it suitable for standardized applications, while its electrical connection is facilitated via a connector pole with PE according to EN standards. The 5-4WE10EB5X/EG24N9K4/A06M valve operates with a supply voltage of 24 VDC and includes multiple ports for flexible integration into hydraulic circuits. Its construction allows for the use of various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC types. The NBR seals incorporated into the design enhance the durability and resistance to fluid contamination. With a max flow capacity and two switching positions, users can expect consistent performance from this Bosch Rexroth valve. Additionally, it adheres to international standards with connection diagrams conforming to NFPA T3.5.1 R2 and ISO 4401 size patterns. The product's weight ensures stability during operation without sacrificing ease of installation or maintenance procedures. In summary, the Bosch Rexroth 5-4WE10EB5X/EG24N9K4/A06M offers robust functionality for users requiring dependable solenoid actuated valves in their hydraulic systems. Its compatibility with multiple fluid types and adherence to industry standards makes it an adaptable component for diverse applications requiring precise flow direction control.
The Bosch Rexroth 5-4WE10EB5X/EG24N9K4/A06M (R901527253) is a high-performance industrial hydraulic valve designed for reliable operation in various hydraulic systems. This direct-actuated spool valve features a spool symbol EB, which indicates its function in switching the oil flow direction. With a maximum pressure capacity and solenoid actuation, it ensures precise control over fluid dynamics. The valve's size and CETOP D subplate mounting compatibility make it suitable for standardized applications, while its electrical connection is facilitated via a connector pole with PE according to EN standards. The 5-4WE10EB5X/EG24N9K4/A06M valve operates with a supply voltage of 24 VDC and includes multiple ports for flexible integration into hydraulic circuits. Its construction allows for the use of various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, HETG, and HFC types. The NBR seals incorporated into the design enhance the durability and resistance to fluid contamination. With a max flow capacity and two switching positions, users can expect consistent performance from this Bosch Rexroth valve. Additionally, it adheres to international standards with connection diagrams conforming to NFPA T3.5.1 R2 and ISO 4401 size patterns. The product's weight ensures stability during operation without sacrificing ease of installation or maintenance procedures. In summary, the Bosch Rexroth 5-4WE10EB5X/EG24N9K4/A06M offers robust functionality for users requiring dependable solenoid actuated valves in their hydraulic systems. Its compatibility with multiple fluid types and adherence to industry standards makes it an adaptable component for diverse applications requiring precise flow direction control.
Size 10, symbol E, electrical with solenoid, 24 V DC
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Unpacked Weight: 4.050 kg
Spool valve |
Direct actuated |
Size 10 |
Component series 5X |
Maximum operating pressure 420 bar |
Maximum flow 150 l/min |
5-chamber version |
Data Sheet | Download Data Sheet |
Manual | Download Manual |
Manual | Download Manual |
Spool symbol | Symbol EB |
Max. pressure | 350 |
Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
Productgroup ID | 9,10,11,12,13,14 |
Number of ports | 4 |
Type of actuation | with solenoid actuation |
Size | 10 |
Electrical connector | Connector 3-pole (2 + PE) |
Max. flow | 150 |
Type of connection | Subplate mounting |
Connection diagram NFPA | NFPA T3.5.1 R2-2002 D05 |
Size_CETOP | D05 |
Connection diagram | ISO 4401-05-04-0-05 |
Supply voltage | 24 VDC |
Number of switching positions | 2 |
Weight | 4.050 |
Seals | NBR |
Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC |
