BOSCH REXROTH
R911370664
$116.97
- BOSCH REXROTH
- Material:R911370664
Quantity in stock: 0
The Bosch Rexroth FCAR01.1W0060-N400R0-B-03-NNNN (R911370664) is a compact brake resistor designed for use with frequency converters in regenerative operation. This component is engineered to enhance the performance of drive systems by safely dissipating excess energy as heat during dynamic braking events. Its space-saving design allows for close mounting to the converter, optimizing the use of available space within industrial applications. Constructed with nonflammable resistor elements, the FCAR01.1W0060-N400R0-B-03-NNNN ensures a high level of safety and reliability, even under extreme pulse loads. It boasts a high dielectric strength, which contributes to its durability and long-term performance stability. The enclosure of the brake resistor provides added protection against environmental factors that could otherwise affect its functionality. This Bosch Rexroth brake resistor is specifically tailored for scenarios where precise and efficient braking capabilities are required. It plays a crucial role in applications that involve frequent starts and stops or rapid deceleration, ensuring that excess regenerative energy is effectively managed without compromising system integrity or performance. The robust construction and thoughtful design make it an integral component for managing energy in advanced drive systems across various applications.
For the use of frequency converters in regenerative operation, compact brake resistors are available for selection for different power consumptions. The brake resistor is mounted near the converter, which saves space. The resistor elements are non-flammable and enclosed to protect against harmful environmental influences. They allow an extreme pulse load with high dielectric strength.
Type code
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
09 |
10 |
|||||
|
FCAR |
01 |
. |
- |
- |
- |
- |
NNNN |
|||||||
|
01 |
Braking resistors FCAR01.1 |
FCAR |
||||||||||||
|
Line |
||||||||||||||
|
02 |
01 |
01 |
||||||||||||
|
Variant |
||||||||||||||
|
03 |
1 |
1 |
||||||||||||
|
Type of cooling, design |
||||||||||||||
|
04 |
Air cooling |
W |
||||||||||||
|
Continuous power |
||||||||||||||
|
05 |
E.g. 1.56 W |
1K56 |
||||||||||||
|
Additional options |
||||||||||||||
|
06 |
None |
N |
||||||||||||
|
Resistance value |
||||||||||||||
|
07 |
E.g. 70.0 Ohm |
070R0 |
||||||||||||
|
Protection type |
||||||||||||||
|
08 |
IP20 |
A |
||||||||||||
|
IP40 |
B |
|||||||||||||
|
Nominal DC bus voltage |
||||||||||||||
|
09 |
DC 320 V |
03 |
||||||||||||
|
DC 560 V |
05 |
|||||||||||||
|
Other version |
||||||||||||||
|
10 |
None |
NNNN |
||||||||||||
Brake chopper/resistor
|
Type |
Operating time OT |
Resistor |
Continuous braking power |
|
% |
Ω |
kW |
|
| FCAR01.1W0060-N400R0-B-03-NNNN | 10 | 400 | 0.06 |
| FCAR01.1W0080-N750R0-B-05-NNNN | 750 | 0.08 | |
| FCAR01.1W0100-N190R0-B-03-NNNN | 190 | 0.1 | |
| FCAR01.1W0100-N400R0-B-03-NNNN | 20 | 400 | |
| FCAR01.1W0150-N750R0-B-05-NNNN | 750 | 0.15 | |
| FCAR01.1W0200-N095R0-B-03-NNNN | 10 | 95 | 0.2 |
| FCAR01.1W0200-N190R0-B-03-NNNN | 20 | 190 | |
| FCAR01.1W0260-N250R0-B-05-NNNN | 10 | 250 | 0.26 |
| FCAR01.1W0260-N400R0-B-05-NNNN | 400 | ||
| FCAR01.1W0300-N065R0-B-03-NNNN | 65 | 0.3 | |
| FCAR01.1W0390-N150R0-B-05-NNNN | 150 | 0.39 | |
| FCAR01.1W0400-N095R0-B-03-NNNN | 20 | 95 | 0.4 |
| FCAR01.1W0500-N065R0-B-03-NNNN | 65 | 0.5 | |
| FCAR01.1W0520-N230R0-A-05-NNNN | 230 | 0.52 | |
| FCAR01.1W0520-N350R0-A-05-NNNN | 350 | ||
| FCAR01.1W0780-N075R0-A-05-NNNN | 10 | 75 | 0.78 |
| FCAR01.1W0780-N140R0-A-05-NNNN | 20 | 140 | |
| FCAR01.1W1K56-N040R0-A-05-NNNN | 10 | 40 | 1.56 |
| FCAR01.1W1K56-N070R0-A-05-NNNN | 20 | 70 | |
| FCAR01.1W02K0-N047R0-A-05-NNNN | 47 | 2 | |
| FCAR01.1W03K0-N034R0-A-05-NNNN | 34 | 3 | |
| FCAR01.1W3K50-N018R9-A-05-NNNN | 10 | 18.9 | 3.5 |
| FCAR01.1W4K00-N016R0-A-05-NNNN | 16 | 4 | |
| FCAR01.1W6K50-N010R0-A-05-NNNN | 10 | 6.5 | |
| FCAR01.1W10K0-N006R0-A-05-NNNN | 6 | 10 | |
| FCAR01.1W10K0-N028R0-A-05-NNNN | 20 | 28 | |
| FCAR01.1W12K0-N008R0-A-05-NNNN | 10 | 8 | 12 |

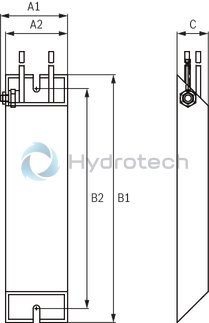

Size 1
Dimensions
|
Type |
Size |
A1 |
A2 |
B1 |
B2 |
C |
Weight |
|
m |
|||||||
|
mm |
mm |
mm |
mm |
mm |
kg |
||
| FCAR01.1W0060-N400R0-B-03-NNNN | 1 | 43 | 40 | 150 | 132 | 20 | 0.215 |
| FCAR01.1W0080-N750R0-B-05-NNNN | 1 | 43 | 40 | 210 | 192 | 20 | 0.3 |
| FCAR01.1W0100-N190R0-B-03-NNNN | 1 | 43 | 40 | 210 | 192 | 20 | 0.3 |
| FCAR01.1W0100-N400R0-B-03-NNNN | 1 | 43 | 40 | 210 | 192 | 20 | 0.3 |
| FCAR01.1W0150-N750R0-B-05-NNNN | 1 | 43 | 40 | 300 | 282 | 20 | 0.43 |
| FCAR01.1W0200-N095R0-B-03-NNNN | 1 | 63 | 60 | 265 | 246 | 30 | 0.95 |
| FCAR01.1W0200-N190R0-B-03-NNNN | 1 | 63 | 60 | 265 | 246 | 30 | 0.95 |
| FCAR01.1W0260-N250R0-B-05-NNNN | 1 | 63 | 60 | 335 | 316 | 30 | 1.2 |
| FCAR01.1W0260-N400R0-B-05-NNNN | 1 | 63 | 60 | 335 | 316 | 30 | 1.2 |
Size 2
Dimensions
|
Type |
Size |
A1 |
A2 |
B1 |
C |
Weight |
|
m |
||||||
|
mm |
mm |
mm |
mm |
kg |
||
| FCAR01.1W0300-N065R0-B-03-NNNN | 2 | 90.5 | 80 | 320 | 15 | 0.85 |
| FCAR01.1W0390-N150R0-B-05-NNNN | 2 | 90.5 | 80 | 420 | 15 | 1.1 |
| FCAR01.1W0400-N095R0-B-03-NNNN | 2 | 90.5 | 80 | 420 | 15 | 1.1 |
| FCAR01.1W0500-N065R0-B-03-NNNN | 2 | 90.5 | 80 | 520 | 15 | 1.35 |

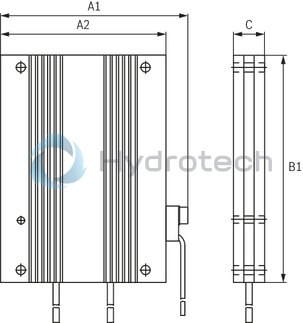

Size 3
Dimensions
|
Type |
Size |
A1 |
B1 |
B2 |
C |
Weight |
|
m |
||||||
|
mm |
mm |
mm |
mm |
kg |
||
| FCAR01.1W0520-N230R0-A-05-NNNN | 3 | 92 | 450 | 400 | 120 | 2.2 |
| FCAR01.1W0520-N350R0-A-05-NNNN | 3 | 92 | 450 | 400 | 120 | 2.2 |
| FCAR01.1W0780-N075R0-A-05-NNNN | 3 | 92 | 550 | 500 | 120 | 2.7 |
| FCAR01.1W0780-N140R0-A-05-NNNN | 3 | 92 | 550 | 500 | 120 | 2.7 |
| FCAR01.1W1K56-N040R0-A-05-NNNN | 3 | 92 | 550 | 500 | 120 | 2.7 |
| FCAR01.1W1K56-N070R0-A-05-NNNN | 3 | 92 | 550 | 500 | 120 | 2.7 |
| FCAR01.1W02K0-N047R0-A-05-NNNN | 3 | 92 | 650 | 600 | 120 | 3.3 |

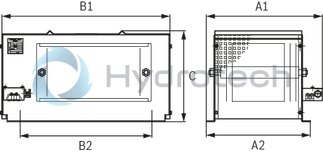

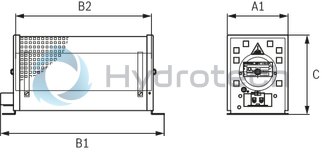

Size 4
Dimensions
|
Type |
Size |
A1 |
A2 |
B1 |
B2 |
C |
Weight |
|
m |
|||||||
|
mm |
mm |
mm |
mm |
mm |
kg |
||
| FCAR01.1W03K0-N034R0-A-05-NNNN | 4 | 330 | 295 | 490 | 380 | 270 | 8.5 |
| FCAR01.1W3K50-N018R9-A-05-NNNN | 4 | 355 | 295 | 490 | 380 | 270 | 8.5 |
| FCAR01.1W4K00-N016R0-A-05-NNNN | 4 | 355 | 295 | 490 | 380 | 270 | 8.5 |
| FCAR01.1W6K50-N010R0-A-05-NNNN | 4 | 455 | 395 | 490 | 380 | 270 | 12 |
| FCAR01.1W10K0-N006R0-A-05-NNNN | 4 | 595 | 595 | 490 | 380 | 270 | 22 |
| FCAR01.1W10K0-N028R0-A-05-NNNN | 4 | 630 | 595 | 490 | 380 | 270 | 22 |
| FCAR01.1W12K0-N008R0-A-05-NNNN | 4 | 595 | 595 | 490 | 380 | 270 | 22 |
|
Type |
FCAR01.1W0060-N400R0-B-03-NNNN |
FCAR01.1W0080-N750R0-B-05-NNNN |
FCAR01.1W0100-N190R0-B-03-NNNN |
FCAR01.1W0100-N400R0-B-03-NNNN |
FCAR01.1W0150-N750R0-B-05-NNNN |
FCAR01.1W0200-N095R0-B-03-NNNN |
FCAR01.1W0200-N190R0-B-03-NNNN |
FCAR01.1W0260-N250R0-B-05-NNNN |
FCAR01.1W0260-N400R0-B-05-NNNN |
FCAR01.1W0300-N065R0-B-03-NNNN |
FCAR01.1W0390-N150R0-B-05-NNNN |
FCAR01.1W0400-N095R0-B-03-NNNN |
FCAR01.1W0500-N065R0-B-03-NNNN |
FCAR01.1W0520-N230R0-A-05-NNNN |
FCAR01.1W0520-N350R0-A-05-NNNN |
FCAR01.1W0780-N075R0-A-05-NNNN |
FCAR01.1W0780-N140R0-A-05-NNNN |
FCAR01.1W1K56-N040R0-A-05-NNNN |
FCAR01.1W1K56-N070R0-A-05-NNNN |
FCAR01.1W02K0-N047R0-A-05-NNNN |
FCAR01.1W03K0-N034R0-A-05-NNNN |
FCAR01.1W3K50-N018R9-A-05-NNNN |
FCAR01.1W4K00-N016R0-A-05-NNNN |
FCAR01.1W6K50-N010R0-A-05-NNNN |
FCAR01.1W10K0-N006R0-A-05-NNNN |
FCAR01.1W10K0-N028R0-A-05-NNNN |
FCAR01.1W12K0-N008R0-A-05-NNNN |
|
|
EFCx610 |
0K40-1P2 |
• |
• |
|||||||||||||||||||||||||
|
0K75-1P2 |
• |
• |
||||||||||||||||||||||||||
|
1K50-1P2 |
• |
• |
||||||||||||||||||||||||||
|
2K20-1P2 |
• |
• |
||||||||||||||||||||||||||
|
0K40-3P4 |
• |
• |
||||||||||||||||||||||||||
|
0K75-3P4 |
• |
• |
||||||||||||||||||||||||||
|
1K50-3P4 |
• |
• |
||||||||||||||||||||||||||
|
2K20-3P4 |
• |
• |
||||||||||||||||||||||||||
|
3K00-3P4 |
• |
• |
||||||||||||||||||||||||||
|
4K00-3P4 |
• |
• |
||||||||||||||||||||||||||
|
5K50-3P4 |
• |
• |
||||||||||||||||||||||||||
|
7K50-3P4 |
• |
• |
||||||||||||||||||||||||||
|
11K0-3P4 |
• |
• |
||||||||||||||||||||||||||
|
15K0-3P4 |
• |
• |
||||||||||||||||||||||||||
|
18K5-3P4 |
• |
• |
||||||||||||||||||||||||||
|
22K0-3P4 |
• |
|||||||||||||||||||||||||||
|
EFC5610 |
0K40-3P2 |
• |
||||||||||||||||||||||||||
|
0K75-3P2 |
• |
|||||||||||||||||||||||||||
|
1K50-3P2 |
• |
|||||||||||||||||||||||||||
|
2K20-3P2 |
• |
|||||||||||||||||||||||||||
|
3K00-3P2 |
• |
|||||||||||||||||||||||||||
|
4K00-3P2 |
• |
|||||||||||||||||||||||||||
|
5K50-3P2 |
• |
|||||||||||||||||||||||||||
|
7K50-3P2 |
• |
|||||||||||||||||||||||||||
|
11K0-3P2 |
• |
|||||||||||||||||||||||||||
|
30K0-3P4 |
• |
|||||||||||||||||||||||||||
|
37K0-3P4 |
• |
|||||||||||||||||||||||||||
|
45K0-3P4 |
• |
|||||||||||||||||||||||||||
|
55K0-3P4 |
• |
|||||||||||||||||||||||||||
|
75K0-3P4 |
• |
|||||||||||||||||||||||||||
|
90K0-3P4 |
• |
|||||||||||||||||||||||||||
|
110K-3P4 |
• (2x) |
|||||||||||||||||||||||||||
|
132K-3P4 |
• (2x) |
|||||||||||||||||||||||||||
|
160K-3P4 |
• (3x) |
|||||||||||||||||||||||||||
Brake chopper
FEAE07.1
Brake chopper
FEAE07.1
