The Bosch Rexroth EFC5610-55K0-3P4-MDA-7P-NNNNN-L1NN (R912005984) is a state-of-the-art Variable Frequency Drive (VFD) designed to provide reliable speed control and energy-efficient operation for a wide variety of applications. This versatile VFD boasts a power range that accommodates both heavy-duty (HD) and normal-duty (ND) modes, ensuring suitability for different motor operation requirements. With the ability to operate both asynchronous and synchronous motors, the EFC5610 series offers flexibility for various industrial uses. Equipped with advanced control technologies such as V/f control, Sensorless Vector Control (SVC), and Field Oriented Control (FOC), this drive ensures precise motor management. The built-in Safe Torque Off (STO) safety function enhances user safety by allowing quick motor shutdown without removing power from the entire machine. Additionally, the integrated brake chopper supports efficient braking capabilities up to a certain kW level. Installation and commissioning are simplified with an integrated operating panel that includes an LED segment display with a potentiometer for easy setup and monitoring. The robust design of the EFC5610-55K0-3P4-MDA-7P-NNNNN-L1NN includes an International protection code of IP20, safeguarding against ingress of solid objects while facilitating installation in various environments. Communication with other industrial devices is made possible through its ModBus fieldbus interface, enabling seamless integration into existing systems. The three-phase VFD operates on a supply voltage ranging between 380V AC to 480V AC, making it suitable for global applications without requiring additional transformers. With its continuous power capability and compact dimensions – including width, height, depth – this drive can be easily accommodated within control cabinets or machine designs. Its weight further contributes to its ease of handling during installation or maintenance procedures. The Bosch Rexroth EFC5610 series represents a reliable solution for those seeking efficient motor control in their operations.
Variable Frequency Drive EFC
EFC5610 is a universal, economical frequency converter for reliable speed control and demand-oriented energy supply. V/f control, SVC and FOC control, easy installation and commissioning as well as an increased power range enable a wide range of applications.
Unpacked Weight: 56 kg
EFC5610 is a universal, economical frequency converter for reliable speed control and demand-oriented energy supply. V/f control, SVC and FOC control, easy installation and commissioning as well as an increased power range enable a wide range of applications.
| Power range 0.4 … 160 kW |
| Built-in brake chopper (up to 22 kW) and net filter |
| Control technology: V/f, SVC, FOC |
| Safety technology: Safe Torque Off (STO): Safety technology: Safe Torque OFF (STO) |
| Possible extension by I/O and field bus modules |
| 3D CAD | Download 3D CAD |
| Width | 265 |
| Productgroup ID | 4,6 |
| Height | 325 |
| International protection code | IP20 |
| Display (LED) | 7-segment display with potentiometer |
| Type code extension | EFC5610-55K0-3P4-MDA-7P-NNNNN-L1NN |
| Continuous power | 55 |
| Safety function | Safe Torque Off (STO) VFD |
| Phases | Three-phase |
| Fieldbus interface | ModBus |
| Depth | 585 |
| EPLAN | https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.EFC5610-55K0-3P4-MDA-7P-NNNNN-L1NN**&downloads=true |
| Supply voltage | 400 V (AC 380…480 V - 15%/ +10%) |
| Weight | 56 |
|
01 |
02 |
03 |
04 |
05 |
06 |
07 |
08 |
|||||
|
EFC5610 |
- |
- |
- |
M |
D |
A |
- |
- |
NN |
|
01 |
Frequency Converter EFC5610 |
EFC5610 |
|
Continuous power |
||
|
02 |
0.4 kW |
0K40 |
|
0.75 kW |
0K75 |
|
|
1.5 kW |
1K50 |
|
|
2.2 kW |
2K20 |
|
|
3.0 kW |
3K00 |
|
|
4.0 kW |
4K00 |
|
|
5.5 kW |
5K50 |
|
|
7.5 kW |
7K50 |
|
|
11 kW |
11K0 |
|
|
15 kW |
15K0 |
|
|
18.5 kW |
18K5 |
|
|
22 kW |
22K0 |
|
|
30 kW |
30K0 |
|
|
37 kW |
37K0 |
|
|
45 kW |
45K0 |
|
|
55 kW |
55K0 |
|
|
75 kW |
75K0 |
|
|
90 kW |
90K0 |
|
|
110 kW |
110K |
|
|
132 kW |
132K |
|
|
160 kW |
160K |
|
|
Mains connection voltage |
||
|
03 |
1 x AC 200 ... 240 V |
1P21) |
|
3 x AC 200 ... 240 V |
3P2 |
|
|
3 x AC 380 ... 480 V |
3P4 |
|
|
Fieldbus interface |
||
|
04 |
Modbus RTU |
M |
|
EMC filter (protection class) |
||
|
05 |
Industrial area, class 3 |
D |
|
Protection type |
||
|
06 |
IP20 |
A |
|
Display |
||
|
07 |
Without (dust protection cover) |
NN |
|
7-segment diagnostics display with potentiometer |
7P |
|
|
Variant |
||
|
08 |
Without other versions |
NN |
|
Start lockout |
L1 |
|
| 1) | Up to 2.2 kW continuous power |
Performance data
|
Type |
Nominal power |
Continuous nominal current |
Nominal power |
Continuous nominal current |
|
Heavy-Duty-mode |
Normal-Duty-mode |
|||
|
PNenn |
INenn |
PNenn |
INenn |
|
|
kW |
A |
kW |
A |
|
| EFC5610-0K40-1P2 | 0.4 | 2.4 | - | - |
| EFC5610-0K75-1P2 | 0.75 | 4.1 | ||
| EFC5610-1K50-1P2 | 1.5 | 7.3 | ||
| EFC5610-2K20-1P2 | 2.2 | 10.1 | ||
| EFC5610-0K40-3P2 | 0.4 | 2.4 | - | |
| EFC5610-0K75-3P2 | 0.75 | 4.1 | ||
| EFC5610-1K50-3P2 | 1.5 | 7.3 | ||
| EFC5610-2K20-3P2 | 2.2 | 10.1 | ||
| EFC5610-3K00-3P2 | 3 | 13.4 | ||
| EFC5610-4K00-3P2 | 4 | 17.5 | ||
| EFC5610-5K50-3P2 | 5.5 | 23.4 | ||
| EFC5610-7K50-3P2 | 7.5 | 31.1 | ||
| EFC5610-11K0-3P2 | 11 | 44.9 | ||
| EFC5610-0K40-3P4 | 0.4 | 1.3 | - | |
| EFC5610-0K75-3P4 | 0.75 | 2.3 | ||
| EFC5610-1K50-3P4 | 1.5 | 4 | ||
| EFC5610-2K20-3P4 | 2.2 | 5.6 | ||
| EFC5610-3K00-3P4 | 3 | 7.4 | ||
| EFC5610-4K00-3P4 | 4 | 9.7 | ||
| EFC5610-5K50-3P4 | 5.5 | 12.7 | 7.5 | 16.8 |
| EFC5610-7K50-3P4 | 7.5 | 16.8 | 11 | 24.3 |
| EFC5610-11K0-3P4 | 11 | 24.3 | 15 | 32.4 |
| EFC5610-15K0-3P4 | 15 | 32.4 | 18.5 | 39.2 |
| EFC5610-18K5-3P4 | 18.5 | 39.2 | 22 | 45 |
| EFC5610-22K0-3P4 | 22 | 45 | 30 | 60.8 |
| EFC5610-30K0-3P4 | 30 | 60.8 | 37 | 73.7 |
| EFC5610-37K0-3P4 | 37 | 73.7 | 45 | 89.1 |
| EFC5610-45K0-3P4 | 45 | 89 | 55 | 108 |
| EFC5610-55K0-3P4 | 55 | 108 | 75 | 147 |
| EFC5610-75K0-3P4 | 75 | 147 | 90 | 176 |
| EFC5610-90K0-3P4 | 90 | 176 | 110 | 212 |
| EFC5610-110K-3P4 | 110 | 212 | 132 | 253 |
| EFC5610-132K-3P4 | 132 | 253 | 160 | 303 |
| EFC5610-160K-3P4 | 160 | 303 | 200 | 380 |
Performance data
|
Type |
EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2 | EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2, EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2 | EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4 | EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4, EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4, EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4 | |||
|
Mains connection voltage |
1-phase |
Unetz |
V AC |
200 ... 240 | - | ||
|
3-phase |
Unetz |
V AC |
- | 200 ... 240 | 380 ... 480 | ||
|
Tolerance of the mains connection voltage |
% |
-10 ... +10 | -15 ... +10 | ||||
|
Mains frequency |
fnetz |
Hz |
50 ... 60 | ||||
|
Tolerance of the mains frequency |
% |
± 5 | |||||
|
Output voltage |
V AC |
0 ... mains connection voltage | |||||
|
Output frequency |
Hz |
0 ... 400 | |||||
|
Overload capacity |
of the continuous nominal current INenn for 1 s |
Heavy-Duty-mode |
% |
200 | |||
|
of the continuous nominal current INenn for 1 min |
Heavy-Duty-mode |
% |
150 | ||||
|
of the continuous nominal current INenn for 1 min |
Normal-Duty-mode |
% |
- | 120 | |||
Brake chopper/resistor
|
Type |
EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2 | EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2 | EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2 | EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4 | EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4 | EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4 | EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4 | ||
|
Brake chopper |
Internal |
Yes | No | ||||||
|
Brake resistor |
External |
Yes | |||||||
|
Motor cable length (EN 61800-3 C3) |
Internal |
m |
15 | 30 | 15 | 30 | 50 | 75 | |
|
External |
m |
30 | 50 | 30 | 50 | 100 | 150 | ||
Ambient conditions
|
Type |
EFC5610 | |||
|
Permitted ambient temperature |
without Derating |
T |
°C |
-10 ... +45 |
|
Reduction in output power |
at operating elevation from 1000 m above sea level |
1 % per 100 m | ||
|
Relative humidity |
no condensation |
% |
< 90 | |
|
Protection type |
IP20 | |||
Functions
|
Type |
EFC5610-0K40-1P2, EFC5610-0K75-1P2, EFC5610-1K50-1P2, EFC5610-2K20-1P2, EFC5610-0K40-3P2, EFC5610-0K75-3P2, EFC5610-1K50-3P2, EFC5610-2K20-3P2, EFC5610-3K00-3P2, EFC5610-4K00-3P2, EFC5610-5K50-3P2, EFC5610-7K50-3P2, EFC5610-11K0-3P2, EFC5610-0K40-3P4, EFC5610-0K75-3P4, EFC5610-1K50-3P4, EFC5610-2K20-3P4, EFC5610-3K00-3P4, EFC5610-4K00-3P4, EFC5610-5K50-3P4, EFC5610-7K50-3P4, EFC5610-11K0-3P4, EFC5610-15K0-3P4, EFC5610-18K5-3P4, EFC5610-22K0-3P4, EFC5610-30K0-3P4, EFC5610-37K0-3P4, EFC5610-45K0-3P4, EFC5610-55K0-3P4, EFC5610-75K0-3P4, EFC5610-90K0-3P4 | EFC5610-110K-3P4, EFC5610-132K-3P4, EFC5610-160K-3P4 | |||
|
Control technology |
V/f SVC (sensorless vector control) FOC (field oriented control) |
||||
|
Switching frequency |
configurable in 1 kHz steps |
PWM |
kHz |
1 ... 15 | 1 ... 12 |
|
Start-up torque |
at 1.5 Hz (V/f) max. |
% |
100 | ||
|
at 3 Hz (V/f) max. |
% |
150 | |||
|
at 0.5 Hz (SVC) max. |
% |
200 | |||
|
at 0 Hz (FOC) max. |
% |
200 | |||
|
Frequency resolution |
Analog |
Hz |
0.4 | ||
|
Analog |
1/1000 of the output frequency | ||||
|
Digital |
Hz |
0.01 | |||
|
Frequency setting tolerance |
Analog |
Hz |
0.4 | ||
|
Digital |
Hz |
0.04 | |||
|
V/f curve |
Freely definable Linear Quadratic |
||||
|
Ramps |
for acceleration and braking |
Linear S-curve |
|||
|
DC disc brake |
Start frequency |
Hz |
0 ... 50 | ||
|
Braking time |
s |
0 ... 10 | |||
|
Automatic PWM frequency adjustment |
Load-dependent PWM frequency adjustment | ||||
|
Integrated control |
Integrated sequential circuit | ||||
|
Controller |
PID | ||||
|
Bus systems |
Internal |
Modbus | |||
|
External |
PROFIBUS CANopen Sercos EtherCAT (Profil CANopen, CoE) Modbus TCP PROFINET EtherNet/IP |
||||
|
Number of digital inputs |
24 V DC (of which 1x pulse train 50 kHz) |
5 | |||
|
Number of digital outputs |
24 V DC/50 mA (pulse train 32 kHz) |
1 | |||
|
Number of relay outputs |
230 V AC/30 V DC/3 A |
1 | |||
|
Number of analog inputs |
0 ... 10 V or 0 ... 20 mA |
2 | |||
|
Number of analog outputs |
0 ... 10 V or 0 ... 20 mA |
1 | |||
|
Status messages via digital outputs |
Operation Target value reached For other parameters, see technical documentation |
||||
|
Display |
LED 5 digit Dust cover with 5 diagnostic LEDs (option) LCD (option) |
||||
|
Status LED |
Rotation direction Operating status |
||||
|
Safety Technology |
Option |
Safe Torque Off (STO, SIL 3 PL e) | |||
|

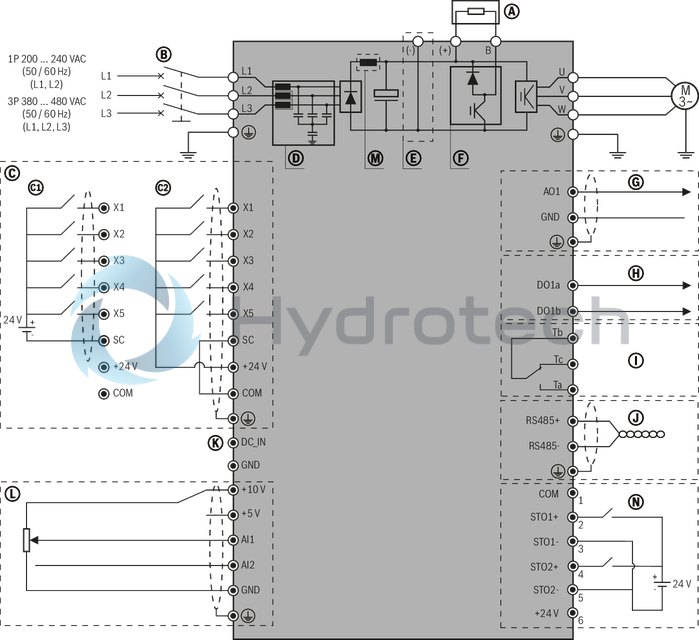

Connections |
Brief description |
|
External brake resistor |
|
Main switch |
|
Digital multifunctional inputs |
|
External supply PNP |
|
Internal supply PNP |
|
EMC filter |
|
(-) Terminal for 5K50 and higher |
|
Internal brake chopper for 0K40 ... 22K0 |
|
Analog output |
|
Open collector or impulse output |
|
Relay output |
|
Communication interface |
|
Auxiliary voltage supply for circuit board |
|
Analog voltage/current input |
|
Internal DC choke for EFC5610 30K0 and higher |
|
STO function |
|
Power supply |
|
Signal supply |
|
Shield cable required |

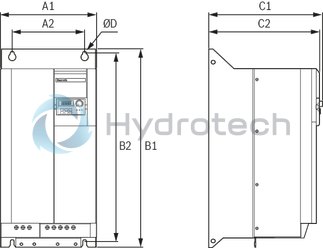

Dimensions
|
Type |
A1 |
A2 |
B1 |
B2 |
C1 |
C2 |
ØD |
Weight |
|
m |
||||||||
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg |
|
| EFC5610-0K40-1P2 | 95 | 66 | 166 | 156 | 167 | 159 | 4.5 | 1.5 |
| EFC5610-0K75-1P2 | 95 | 66 | 166 | 156 | 167 | 159 | 4.5 | 1.5 |
| EFC5610-1K50-1P2 | 95 | 66 | 206 | 196 | 170 | 162 | 4.5 | 1.9 |
| EFC5610-2K20-1P2 | 120 | 80 | 231 | 221 | 175 | 167 | 4.5 | 2.6 |
| EFC5610-0K40-3P2 | 95 | 66 | 166 | 156 | 167 | 159 | 4.5 | 1.5 |
| EFC5610-0K75-3P2 | 95 | 66 | 206 | 196 | 170 | 162 | 4.5 | 1.9 |
| EFC5610-1K50-3P2 | 120 | 80 | 231 | 221 | 175 | 167 | 4.5 | 2.6 |
| EFC5610-2K20-3P2 | 120 | 80 | 231 | 221 | 175 | 167 | 4.5 | 2.6 |
| EFC5610-3K00-3P2 | 130 | 106 | 243 | 228 | 233 | 225 | 6.5 | 3.9 |
| EFC5610-4K00-3P2 | 130 | 106 | 243 | 228 | 233 | 225 | 6.5 | 4.3 |
| EFC5610-5K50-3P2 | 150 | 125 | 283 | 265 | 233 | 225 | 6.5 | 5.7 |
| EFC5610-7K50-3P2 | 150 | 125 | 283 | 265 | 233 | 225 | 6.5 | 6.4 |
| EFC5610-11K0-3P2 | 165 | 140 | 315 | 300 | 241 | 233 | 6.5 | 8.5 |
| EFC5610-0K40-3P4 | 95 | 66 | 166 | 156 | 167 | 159 | 4.5 | 1.5 |
| EFC5610-0K75-3P4 | 95 | 66 | 166 | 156 | 167 | 159 | 4.5 | 1.5 |
| EFC5610-1K50-3P4 | 95 | 66 | 206 | 196 | 170 | 162 | 4.5 | 1.9 |
| EFC5610-2K20-3P4 | 95 | 66 | 206 | 196 | 170 | 162 | 4.5 | 1.9 |
| EFC5610-3K00-3P4 | 120 | 80 | 231 | 221 | 175 | 167 | 4.5 | 2.6 |
| EFC5610-4K00-3P4 | 120 | 80 | 231 | 221 | 175 | 167 | 4.5 | 2.6 |
| EFC5610-5K50-3P4 | 130 | 106 | 243 | 228 | 233 | 225 | 6.5 | 3.9 |
| EFC5610-7K50-3P4 | 130 | 106 | 243 | 228 | 233 | 225 | 6.5 | 4.3 |
| EFC5610-11K0-3P4 | 150 | 125 | 283 | 265 | 233 | 225 | 6.5 | 5.7 |
| EFC5610-15K0-3P4 | 150 | 125 | 283 | 265 | 233 | 225 | 6.5 | 6.4 |
| EFC5610-18K5-3P4 | 165 | 140 | 315 | 300 | 241 | 233 | 6.5 | 8 |
| EFC5610-22K0-3P4 | 165 | 140 | 315 | 300 | 241 | 233 | 6.5 | 8.5 |
| EFC5610-30K0-3P4 | 250 | 200 | 510 | 492 | 272 | 264 | 7 | 27.5 |
| EFC5610-37K0-3P4 | 250 | 200 | 510 | 492 | 272 | 264 | 7 | 29.5 |
| EFC5610-45K0-3P4 | 265 | 200 | 585 | 555 | 325 | 317 | 11 | 39 |
| EFC5610-55K0-3P4 | 265 | 200 | 585 | 555 | 325 | 317 | 11 | 42 |
| EFC5610-75K0-3P4 | 325 | 200 | 760 | 727 | 342 | 334 | 11 | 54 |
| EFC5610-90K0-3P4 | 325 | 200 | 760 | 727 | 342 | 334 | 11 | 61 |
| EFC5610-110K-3P4 | 385 | 250 | 923 | 893 | 350 | 342 | 11 | 71.7 |
| EFC5610-132K-3P4 | 385 | 250 | 923 | 893 | 350 | 342 | 11 | 76.6 |
| EFC5610-160K-3P4 | 480 | 400 | 1030 | 995 | 360 | 352 | 13 | 108 |
Mains filter
FCAF01.1
Mains filter
FCAF01.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Brake resistor
FCAR01.1
Brake resistor
FCAR01.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Brake chopper
FEAE07.1
Brake chopper
FEAE07.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Option card module
FEAE02.1
Option card module
FEAE02.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Option module Fieldbus interface
FEAE03.1
Option module Fieldbus interface
FEAE03.1
Operating instructions
Application description
Catalog
Operating instructions
Operating instructions
Spare parts and repair
Option module technology interface
FEAE04.1
Option module technology interface
FEAE04.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
User panel and dust protection cover
FPCC02.1
User panel and dust protection cover
FPCC02.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Mounting plate for user panels
FEAM02.1
Mounting plate for user panels
FEAM02.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Control cable
FRKS
Control cable
FRKS
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Shield plate
FEAM03.1
Shield plate
FEAM03.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Replacement plug set
FEAE05.1
Replacement plug set
FEAE05.1
Operating instructions
Application description
Catalog
Spare parts & repair
CAD Download
Certification
|
Type |
EFC5610 |
|
Certifications |
CE UL cUL EAC C-Tick (RCM) EU RoHS |
