SUN HYDRAULICS
XZV

$100.50 USD

Tags:

SUN HYDRAULICS
Material:XZV
Summary:Manifold

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

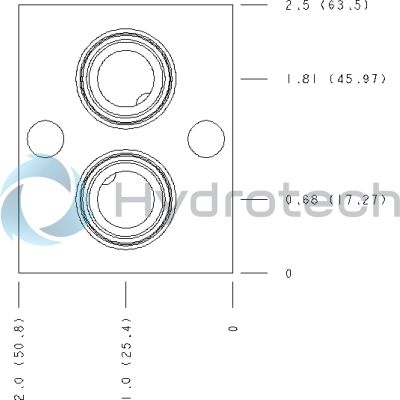

The Sun Hydraulics XZV (XZV) is a line mount manifold that features a direct mount, cross pilot design with two gasket ports. It is constructed with a special 2-bolt interface and has a mounting hole diameter of 0.34 inches (8.6 mm). The manifold includes two open cavities and utilizes the T11A cavity specification, with SAE 6 port sizes for hydraulic connections. This product is designed to integrate seamlessly into hydraulic systems, providing reliable performance in directing fluid flow and pressure management. The XZV manifold is crafted from 6061T651 aluminum, known for its strong yet cost-effective properties and exceptional corrosion resistance, making it suitable for various environmental conditions without the need for anodizing. This material choice ensures the manifold withstands pressures up to 3000 psi (210 bar), although users should consider system pressure limitations based on manifold material specifications. With its robust construction and efficient design, the Sun Hydraulics XZV is ideal for applications requiring precise control in hydraulic circuits while maintaining structural integrity under demanding conditions.

Description

Body Type	Line mountLine mount
Interface	Special - 2 boltSpecial - 2 bolt
Body Features	Direct mount, cross pilot, 2 gasket portsDirect mount, cross pilot, 2 gasket ports
Mounting Hole Diameter	.34 in.8.6 mm
Mounting Hole Depth	ThroughThrough
Mounting Hole Quantity	22
Open Cavities	22
Cavity	T-11A
Port Size	SAE 6SAE 6

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
